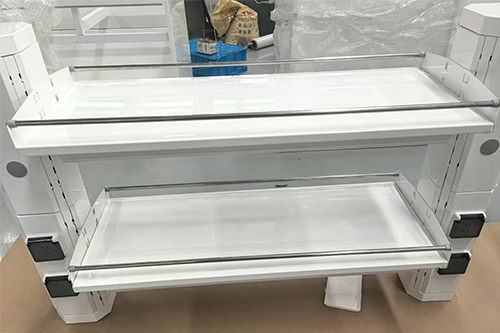

The all steel column reagent rack adopts cold-rolled steel plates or aluminum alloy profiles as the main structure. The surface is treated with acid pickling and phosphating, and then sprayed with epoxy resin powder for high-temperature curing. It has the characteristics of acid and alkali resistance, corrosion resistance, high hardness, and strong adhesion.
structural characteristics
Main body: The column is made of 1.0-1.2mm cold-rolled steel plate or 1.0mm aluminum alloy profile, which is formed by CNC machining and coated with epoxy resin powder for high-temperature curing.
Hanging bracket: Made of 1.0-1.2mm cold-rolled steel plate bent and formed, firmly connected to the main structure.
Laminated board: CNC machining of 1.0-1.2mm cold-rolled steel plate, with adjustable height.
Partition: 8mm float frosted glass, designed with rounded corners on all four sides.
Anti drop rack: 1.0mm aluminum alloy elliptical profile to prevent reagents from falling.
functional design
Power system: equipped with laboratory specific 220V, 10A splash proof sockets, and PC material fireproof and flame-retardant shell.
Wiring function: The column can be installed with sockets, water plugs, and air plugs, with flexible combinations.
Scalability: It can be upgraded to a functional column and directly introduced into the ceiling's water, electricity, and gas pipelines.
Applicable scenarios
Suitable for places such as laboratories, hospitals, and research institutions that require the storage of reagents or instruments, supporting customized design to meet different usage needs.
